DC04 Sheet Metal Stamping Stage Die Microwave Oven Door

Mould Weight : 1T

Part Material : DC04

Mould Life : 1,000,000 shots

Punch Tonnage : 300T

Standard Parts Brand : MISUMI

Brand Name : IDO

Model Number : Microwave oven door

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Mould Type : Stage mold

Mould Size : 850*550*345mm

Part Name : Microwave oven door

Contact Now

DC04 Sheet Metal Stamping Stage Die Microwave Oven Door

The DC04 Sheet Metal Stamping Stage Die is designed for forming microwave oven door components with stable dimensions, smooth surfaces, and consistent stamping quality. Manufactured with precision-machined die components, it is suitable for multi-stage processes such as blanking, forming, flanging, and punching, helping improve production efficiency and reduce part deformation.

Quick Detail:

Cycle duration: 6–14s depending on product.
Repairs finish in 30 minutes; tool changes in 15 minutes.
Punch edges sharpen after 300,000–500,000 cycles.
Die motions are software-controlled.
Cabinets can be produced with a single press table and tool set, lowering costs.
Maintenance requires only sub-die removal.
One tool set produces several models; changeovers handled by program.

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

DC04 Sheet Metal Stamping Stage Die Microwave Oven Door

Product Tags:

DC04 sheet metal stamping die

microwave oven door die

metal stamping stage die

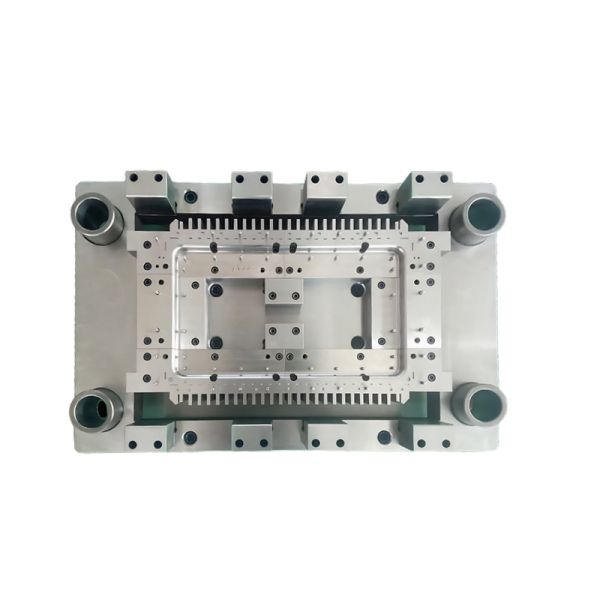

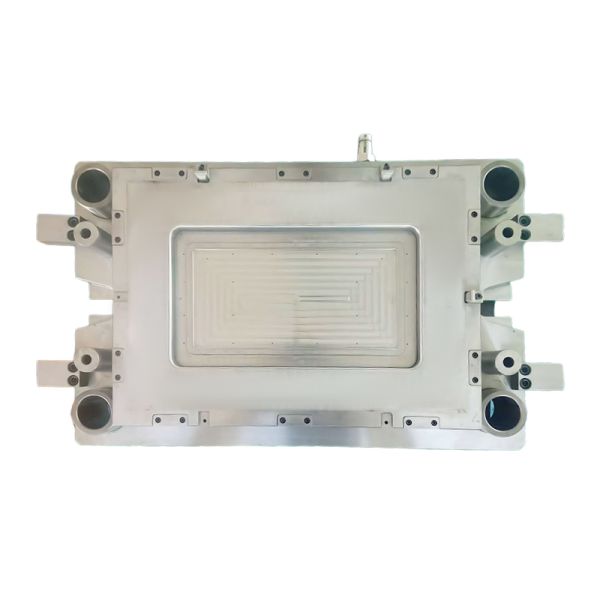

DC04 Sheet Metal Stamping Stage Die Microwave Oven Door Images
